IMPCO VFF30-2 Vacuum Fuel Lockoff

(No reviews yet) Write a Review
SKU:
167047
UPC:
68.39
Weight:
0.60 KGS
Shipping:
Calculated at Checkout
  • IMPCO VFF30-2 Vacuum Fuel Lockoff
  • IMPCO VFF30-2 Vacuum Fuel Lockoff
£74.99 Inc. VAT
£62.49
Ex. VAT

Description

IMPCO VFF30-2 Vacuum Fuel Lockoff



The Model VFF30 is a combination fuel lockoff and filter, engineered for use with LPG (liquid or vapor) or Natural Gas Vapor. It comes with silicone diaphragms. A pressure of 0.5” w.c (0.12kPa) is required to open the lockoff. The VFF30 is suitable for engines up to 325 hp (242 kW) at a maximum working pressure of 312 psi (21.51 Bar). The extra large capacity filter element is fully serviceable.



SPECIFICATIONS

Fuel Type LPG Liquid/Vapor / Natural Gas Vapor
Inlet Pressure (maximum) 312 psi (21.51 Bar)
Flow Rate 26.7 CFM (12.6 L/s)
Operating Temperature Range -40°F to +250°F (-40°C to +121°C)
Vacuum Activation Minimum Opening 0.50” w.c. (0.12kPa)
Fully Opened 11.5” w.c. (2.86 kPa)
Minimum Operating Opening  2.0” w.c. (0.50 kPa)

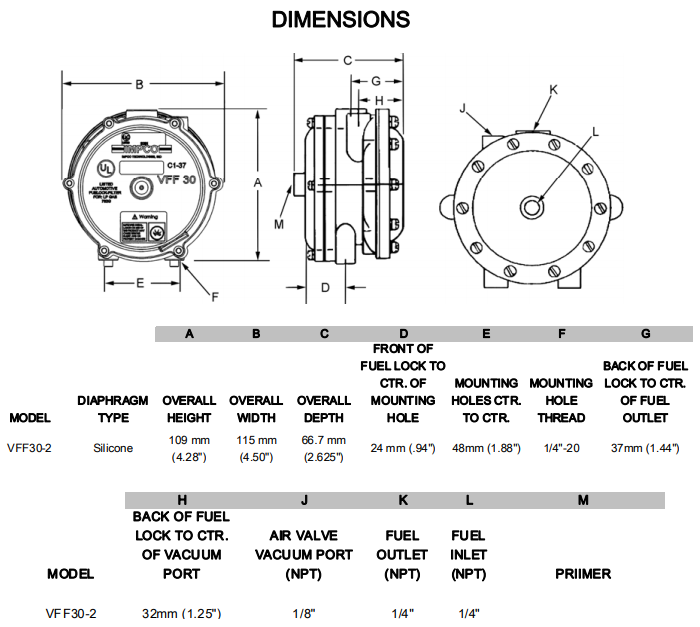

Mounting Position Vertical (as shown above)
Certification UL (AU1502) Inquire for specific ECE approval
