60 Litres Motorhome Gas Tank Ø315mm by 870mm

(No reviews yet) Write a Review
SKU:
400012
Availability:
Delivery up to 4 working days
Weight:
33.40 KGS
Shipping:
£20.00 (Fixed Shipping Cost)

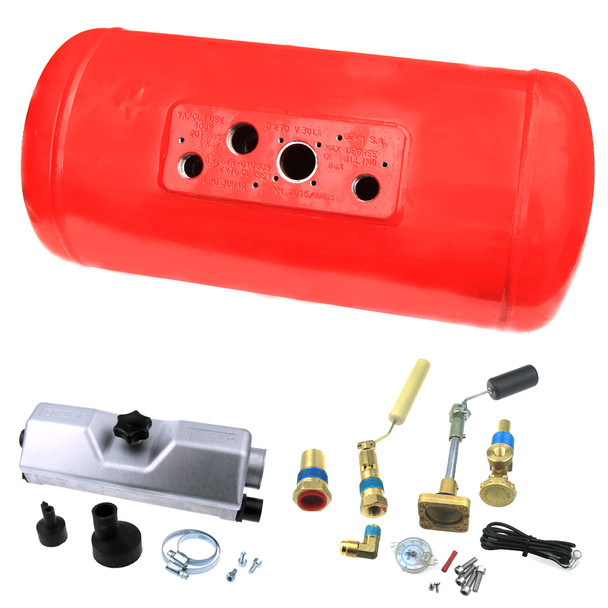

  • 60litres Ø315mm L869mm vapour gas cylinder tank lpg storage for motorhome, caravan, campervan, rv set with valves
  • homologation 60litres Ø315mm L869mm vapour gas cylinder tank lpg storage for motorhome, caravan, campervan, rv set with valves
£247.99 Inc. VAT
£206.66
Ex. VAT

0% interest for 4 months with PayPal Credit. Find out more

Description

20 Litres Motorhome Vapour Gas Tank Ø200mm by 721mm with set of valves and box

Red vapour tanks are specially designed for campervans, caravans, motorhomes and any other RV vehicles as they provide gas in vapour phase.

The tank can be safely refilled trough dedicated filling point at every Autogas LPG service station.

Specification

Diameter 200mm
Length 721mm
Tank weight 15kg
Usable capacity 16L (8.32kg)
Full tank weight 23kg



Valves




The valves starting from the left are:

  1. Manual outlet valve, thread without adapter: 1/4" NPT, with adapter: W21.8 LH
  2. over pressure relief valve (PRV) - in case of sudden pressure increase (over 27 bar) the excess gas is released to the environment
  3. gas level float with mechanical gauge
  4. filling valve with 80% cut off valve (OPD), female thread without elbow: 3/8" NPT, with elbow 3/4" UNF JIC



Diameter [mm]Lenght [mm]Capacity [L]80% capacityEmpty weight [kg]Full tank weight [kg]
200 583 16 13L (6.76kg) 13.5 20
200 721 20 16L (8.32kg) 15 23
200 891 25 20L (10.4kg) 16.8 26.8
200 1070 30 24L (12.48kg) 18.9 30.9
230 645 23 18L (9.36kg) 14.5 23.5
230 822 30 24L (12.48kg) 16.5 28.5
230 1014 38 30L (15.6kg) 19.2 34.2
270 605 30 24L (12.48kg) 14.6 26.6
270 785 40 32L (16.64kg) 17.2 33.2
270 1060 55 44L (22.88kg) 21.7 43.7
300 647 40 32L (16.64kg) 17.2 33.2
300 935 60 48L (24.96kg) 21.8 45.8
300 1085 70 56L (29.12kg) 23.4 51.4
315 870 60 48L (24.96kg) 24.5 48.5
315 1000 70 56L (29.12kg) 28.4 56.4
360 629 55 44L (22.88kg) 24.9 46.9
360 936 85 68L (35.36kg) 33 67
360 1087 100 80L (41.6kg) 36 76
360 1298 120 96L (49.92kg) 40.2 88.2





Warranty Information

24 months manufacturer warranty.
