200mm Cylindrical 30° Tomasetto AT-02 Multivalve

(No reviews yet) Write a Review

SKU:: 140207
Weight:: 1.00 KGS
Shipping:: Calculated at Checkout

£40.99 Inc. VAT

£34.16

Ex. VAT

Current Stock:

Quantity:

Description
Warranty Information
0 Reviews

Description

200mm diameter 30° Cylindrical Tomasetto AT-02 Multivalve MVAT0A01.1

Standard 6mm Output

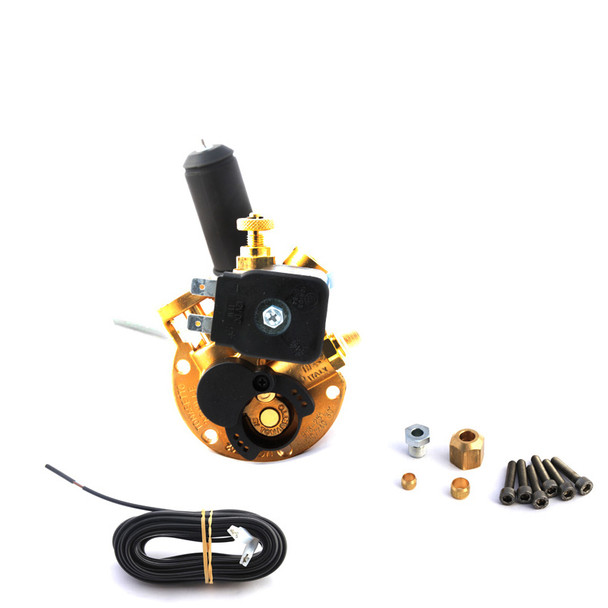

Multivalve set includes:

Multivalve standard version: with outlet fitting for Ø6 mm pipe and solenoid valve hole Ø3.0 mm
6meters coil wire with plugs
6x Mounting Bolts
8mm Inlet NUT (Female) with Olive
6mm Outlet NUT (Male) with Olive

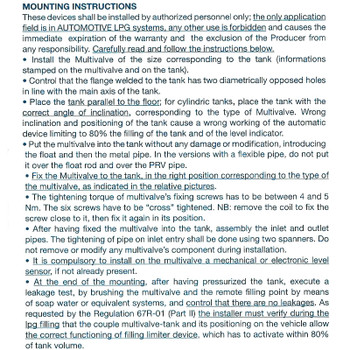

Installation Manual

Level Gauge is NOT included

Technical data:

Material: Forged brass on CNC machines
Weight: 0.9KG
Max pressure: 2,7 MPa (27 bar) - 2,2 MPa (22 bar) India
Max flow: 23,4 Nm3/min
Nominal pressure: 4,4 Nm3/min*
Fueling: 17/18 liters/min. at 10 bar
Inlet fitting: 1/4
Coil voltage: 12V DC
Outlet fitting: M10x1 - pipe: Ø 6 mm (STANDARD Version) / M12x1 - pipe: Ø 8 mm (EXTRA Version)
Coil power consumption: 11W (STANDARD Version) / 17W (EXTRA Version)
Solenoid Valve Type: Normal (STANDARD Version) / Controled (EXTRA Version)
Automatic cut-off: 80%
Excess flow valve, tap valve,

The multivalves for LPG tanks, model AT02, are homologated in accordance with the new European Regulation ECE 67R-01 and with the Indian Standards IS-15100 and are provided with all the safety devices stated by the Regulation: pressure relief valve (PRV), thermo-fuse element (PRD), 80% automatic filling stop (*), solenoid valve at the outlet, excess flow valve, non-return valve, manual (service) valve and mechanical level indicator.

The high flows of the safety devices (PRD and PRV) make the Tomasetto AT02 multivalves a leading product on the market. Severe bon-fire tests, performed by the most important tanks manufacturers, have been brilliantly completed.

AT02 multivalves are available for all the different types of tanks present on the market, both cylindrical and toroidal. Some cylindrical multivalves are also foreseen in left configuration.

AT02 Multivalve homologation	E8 67R-01 3018
Current extension of homologation	EXT 28
