Tomasetto AT04 140HP CNG Natural Gas Reducer

(No reviews yet) Write a Review
SKU:
230104
UPC:
59.89
Weight:
2.00 KGS
Shipping:
Calculated at Checkout
  • Tomasetto AT04 140HP RMTA1010 CNG Pressure Reducer Regulator Vapourizer Natural Gas
  • Tomasetto AT04 140HP RMTA1010 CNG Pressure Reducer Regulator Vapourizer Natural Gas
£59.89 Inc. VAT
£49.91
Ex. VAT

Description

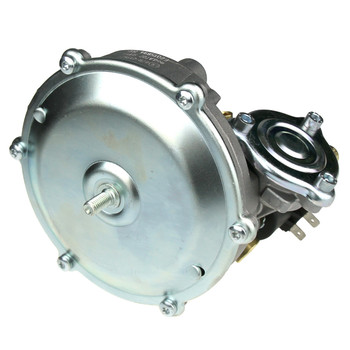

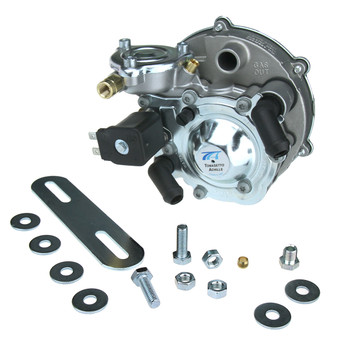

Tomasetto AT04 RMAT1010 CNG (Methane) Gas Pressure Regulator for up to 140 HP

Producer Code: RMAT1010



The CNG reducer model AT04 is an electronic CNG pressure reducer with 3 pressure reduction stages, for traditional systems. AT04 reducer is homologated in accordance withECE 110 and in conformity of ISO 15500 Regulation. Compact and very reliable, this reducer has a double regulation system, that allows always the best performance. There are 3 different versions, suitable for different power engines:



Technical data

Dimension: 154,5x190x110 mm
Material: Die-cast Aluminium body, CNC machined
Weight: 2 kg
Type of product: CNG traditional reducer
Max. inlet pressure: 26,00 MPa
Coil voltage: 12V DC
Coil power: 15W
Inlet connection: Ø 6.0 mm M12x1
Outlet connection: Swivel plastic pipe Ø 19mm
Flow rate: 30 kg/h CH4






Warranty Information

24 months producer warranty.
