Supernova
Supernova 4CYL Injector Rail
- SKU:
- 120134
- Weight:
- 0.40 KGS
- Shipping:
- Calculated at Checkout
Description
Supernova 4CYL Injector Rail
High quality injectors for sequential LPG and CNG injection. The plunger and seals are made of fluoropolymer material which is approved to work in very low temperature - up to -40C. The opening / closing times are best in class - that ensures precise and fast gas dosage. The Supernova injectors are available in 2, 3 and 4 cylinder rails, also single version to use with 5mm hose and Hana / Barracuda style adapters.
The preferred settings in calibration program are the same as for Hana Gold, Barracuda, Yeti, 1.9Ohm.
The inlet nozzle takes 12mm gas hose, the outlet is 6mm, we recommend using PARKER 5mm gas hose.
Specification
| Operating voltage | 10-16V DC |
| Operating temperature | -40°C to +125°C |
| Pick current | 4.5A for 2.8ms |
| Hold current | 1.5A |
| Coil resistance | 1.9Ohm |
| Operating pressure | 0-4.0bar |
| Opening time | 1.85ms |
| Closing time | 0.9ms |
| Plunger and bumper material | fluoropolymer |
The injectors come with nominal nozzles at 1.5mm. Polyester filter is recommended to maintain long lifetime of injectors.
Related Products
MAGIC
Magic Jet 4 Cylinder Injector Rail
RAIL IG1 4CYL Injectors Rail
Supernova
Supernova 2CYL Injector Rail
Supernova
Supernova 3CYL Injector Rail

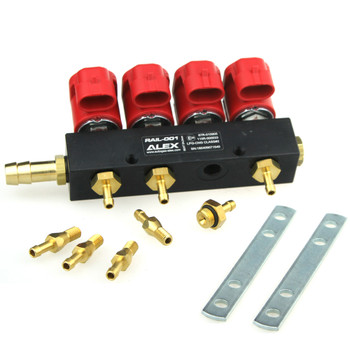

ALEX
