Magic JET Single Injector

(1 review) Write a Review
SKU:
120801
UPC:
12.89
Weight:
0.20 KGS
Shipping:
Calculated at Checkout
£15.99 Inc. VAT
£13.32
Ex. VAT

Description

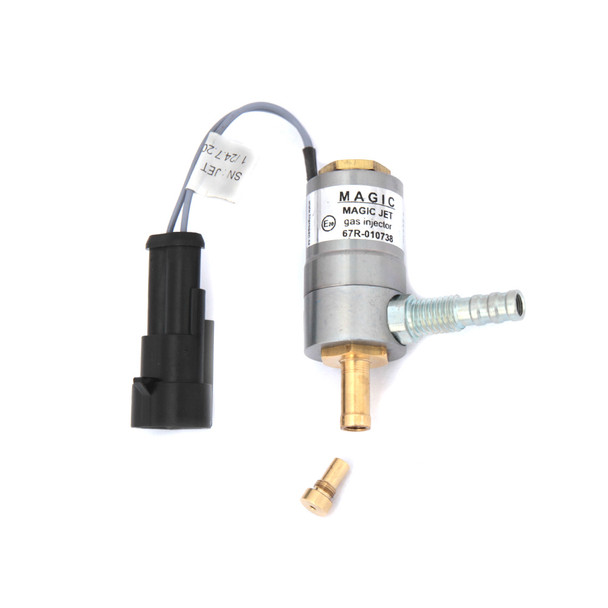

MAGIC JET LPG CNG Single Injector with Nozzle

Spare MagicJET Injector for Replacement or as a Single Mounted



General characteristics:

Handled fule:  LPG / CNG
Max device pass:  52 ccm (air 1 Bar , puls 24 ms) cca 60 HP/cyl., 1,5 Bar rel.
Product life expectancy:   >250 000 000 cycles >200 000 km (2500 RPM, 60km/h)
Maximum operating frequency: 300 Hz
Operating response time: (+12V DC ON) 2,2ms ± 0,2 ms (1Bar rel. air)
Closing response time: 1ms ± 0,2 ms (1Bar rel. air)
Operating temperature range: -20°C ÷ 120°C
Gaseous phase filtration requirements: 80 microns
Lubrication: Not required
Operating pressure range: 0,5 ÷ 4,5 Bar
Pressure response time:  P0 -> Pmax < 1,0 ms (1Bar rel air)
Pressure response time:  Pmax -> P0 < 1,0 ms (1Bar rel air)


Electrical characteristics:

Electrical control Ref .encl:
Speed -Up voltage:    10V DC ÷15 VDC
Speed –Up time:        4 ms
Opening curent:         1,8 A / 3,6V (1Bar rel. air)
Holding current:         1,0 A
Power absorption in holding: 12W (12V)
Resistance:               2 Ohm (20°C)
IP protection ratio:     IP65
