Magic FX 3 cylinders Injector Rail

(No reviews yet) Write a Review
SKU:
120804
UPC:
51.09
Weight:
0.50 KGS
Shipping:
Calculated at Checkout

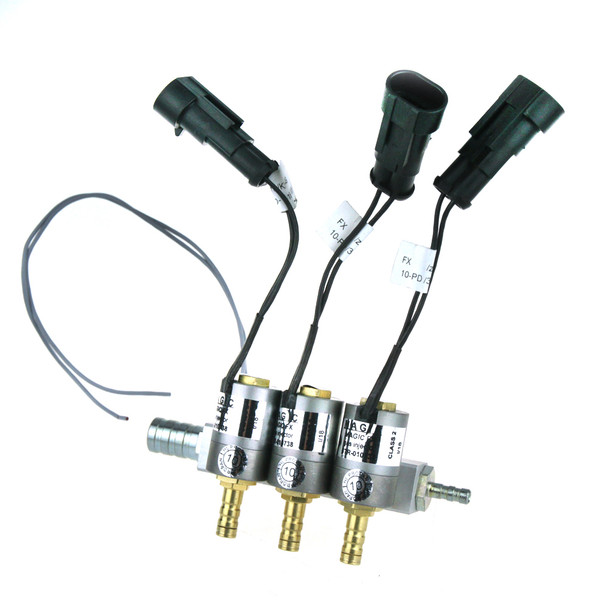

  • hl propan magic fx gas injectors 3 cylinders with temperature probe and pressure output
  • MAGIC JET FX LPG CNG 3 Cylinders Injectors Rail with Nozzle HL Propan
£56.99 Inc. VAT
£47.49
Ex. VAT

Description

MAGIC JET FX 3 Cylinders Injectors Rail for LPG CNG with temperature probe and pressure outlet



3 cylinder Magic FX (NEW Type) Injector rail - high performance, very fast LPG, CNG injector.



General characteristics:

Handled fule:  LPG / CNG
Max device pass:  50 ccm (air 1 Bar , puls 24 ms) cca 60 HP/cyl., 1,5 Bar rel.
Product life expectancy:   >125 000 000 cycles >100 000 km (2500 RPM, 60km/h)
Operating response time (+12V DC ON): 1,65ms ± 0,05 ms (1Bar rel. air)
Closing response time: 0.9ms ± 0,05 ms (1Bar rel. air)
Operating temperature range: -30°C ÷ 120°C
Gaseous phase filtration requirements: 80 microns
Lubrication: Not required
Operating pressure range: 0,0 ÷ 6 Bar
Pressure response time P0 -> Pmax: < 0,5 ms (1Bar rel air)
Pressure response time Pmax -> P0: < 0,5 ms (1Bar rel air)

Weight: 64g


Electrical characteristics:

Electrical control Ref .encl:
Speed -Up voltage:    10V DC ÷15 VDC
Speed –Up time:        2.0-3 ms
Opening curent:         1,5 A / 2,5V (1Bar rel. air)
Holding current:         0,3 - 3,0 A
Power absorption in holding: Min 4W (12V)
Resistance:               1.6 Ohm (20°C)
IP protection ratio:     IP65
