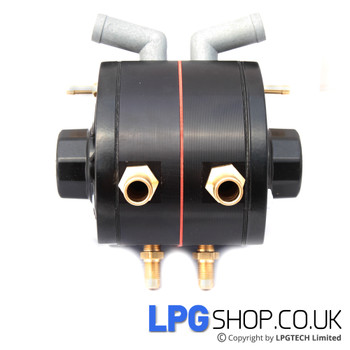

KME Gold 300HP Reducer (inc. Valve with 8mm Inlet)

KME GOLD Reducer (Vaporizer) for sequential gas injection for engines up to 300HP (220kW).

KME GOLD Reducer is dedicated for sequential gas injection systems for engines with big temporary gas intakes. Two vapour gas phase outlets makes it suitable for V-type (6, 8, 10, 12 cylinders) engines. It has integrated electrovalve with 8mm inlet. Effectively control the gas dosage by idle valve.

Technical specification:

• Max Engine Power: 220kW/300HP
• Outlet pressure range: 0.6 to 1.7 BAR
• Liquid Gas Inlet Diameter: 8mm (M12x1)
• Vapour Gas Outlet Diameter: 2x 12mm
• Dimensions: 120mm / 96mm
• Weight: 1.43KG

Reducer box contain:

• KME GOLD Autogas Reducer/Vaporizer/Regulator
• integrated 8mm input electrovalve (solenoid)
• 8mm olive and M12 barrel nut
• Super-seal electrovalve plug with wire
• Reducer Mounting Bracket with washer and nut
• Nipple M12 x M12
• Separate filter in housing and bracket
