KME GOLD GT (old name Turbo) Reducer (Vaporizer) for sequential gas injection for turbo engines up to 330HP
KME GOLD TURBO Reducer is dedicated for high power sequential gas injection systems turbo engines with big temporary gas intakes. Two vapour gas phase outlets makes it suitable for V-type (6, 8, 10, 12 cylinders) engines. It has integrated electrovalve with 8mm inlet. Effectively control the gas dosage by idle valve.
Doble stabilization gas pressure system gives stable and high gas feed.
- Max Engine Power: 330HP - 250kW
- Outlet pressure range: 0.6 to 1.7 BAR
- Liquid Gas Inlet Diameter: 8mm (M12x1)
- Vapour Gas Outlet Diameter: 2x 12mm
- Dimensions: 120mm / 96mm
- Weight: 1.43KG

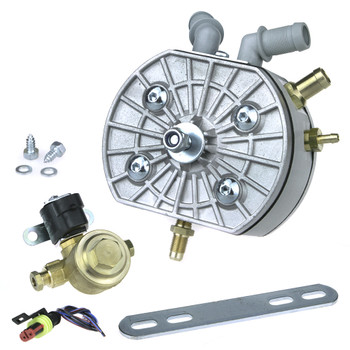

Reducer box contain:
- KME GOLD Turbo Autogas Reducer/Vaporizer/Regulator
- integrated 8mm input electrovalve (solenoid)
- 8mm olive and M12 barrel nut
- Super-seal electrovalve plug with wire
- Reducer Mounting Bracket with washer and nut
- Nipple M12 x M12
- Separate filter in housing and bracket
I am very impress whit this evaporator I installed in jeep whit 300 hp and let my tel you work very weld
I upgraded to kme gold gt from landirenzo rectangle 280bhp model.its a lot smaller and much more efficient.
gets up to temp very quick and handles my 294bhp no problem running 1.5bar
highly recommend, comes with a great price tag
very easy to fit
under the metal plate that holds the water taps in place is a great place for the vap temp sensor as there is 2 screw holes already there.just drill a 5mm hole through the metal plate opposite to where the metal screw is
