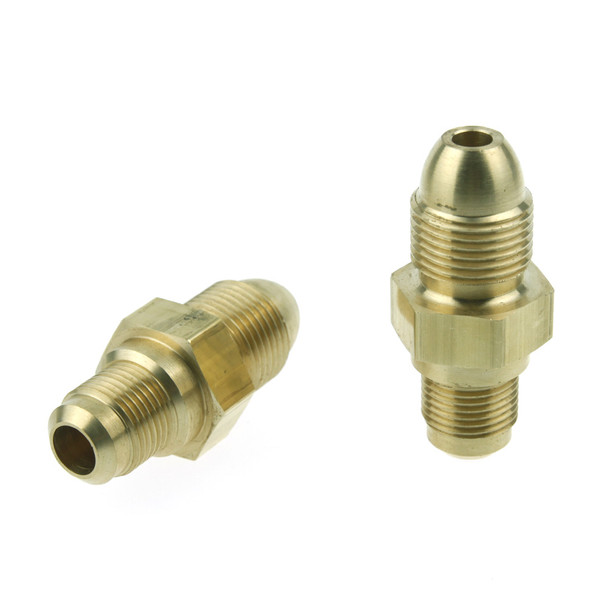

Calor Propane Cylinder (UK POL) Adapter to JIC Hose 3/8" SAE
This adapter dedicated for Calor or any other propane bottle with British POL female inlet helps to connect propane cylinder with JIC type hose and then with JIC type Rotarex filler equiped with non return valve, common for autogas conversions.
Adapter makes possible to refill the Calor gas cylinder with LPG by the nozzle used on autogas refilling stations.
This product contain adapter on its own. To use it for refilling you need also:
- any of JIC type hose (depend on the lenght you need) available here: https://www.lpgshop.co.uk/jic-lpg-hoses/
- JIC type to UK Bayonet filling point (straight or angled, whatever more convenient to use in your case): https://www.lpgshop.co.uk/uk-filling-point-bayonet-to-jic-straight/ or https://www.lpgshop.co.uk/uk-filling-point-bayonet-to-jic-90-deg/
- (option) housing box for UK Bayonet filler to fit it on the chassis or bumper: https://www.lpgshop.co.uk/uk-filling-point-housing-box/
- (option) mounting bracket for UK bayonet if you want to place it somewhere else: straight https://www.lpgshop.co.uk/plate-filling-point-bracket-straight/ or angled https://www.lpgshop.co.uk/plate-filling-point-bracket-90deg/
Picture shows adapter with a JIC hose and with a JIC to UK bayonet filling point (with internal non return valve)
Please notice that brass only has the self sealing properties.
Do not fill the bottle over 80% of its capacity!
How many liters of LPG you can safetly put in the callor gas cylinder:
|LPG: KG to Litres (-20%)|
LPG: 1KG = ~2Litres
Foto shows the suitable Calor bottle inlet:
Thanks to internal thread adapter is compatible with UK Bayonet (W21.8) to All Europe Adapters SET
so you may fill your bottle everywhere in Europe and outside.
LPGSHOP do not take any responsibility for improper use of offered products.
