Barracuda Big Flow (130Nl/min) Single Mount Injector

(No reviews yet) Write a Review
SKU:
120605
UPC:
15.89
Weight:
0.70 KGS
Shipping:
Calculated at Checkout
£18.99 Inc. VAT
£15.82
Ex. VAT

Description

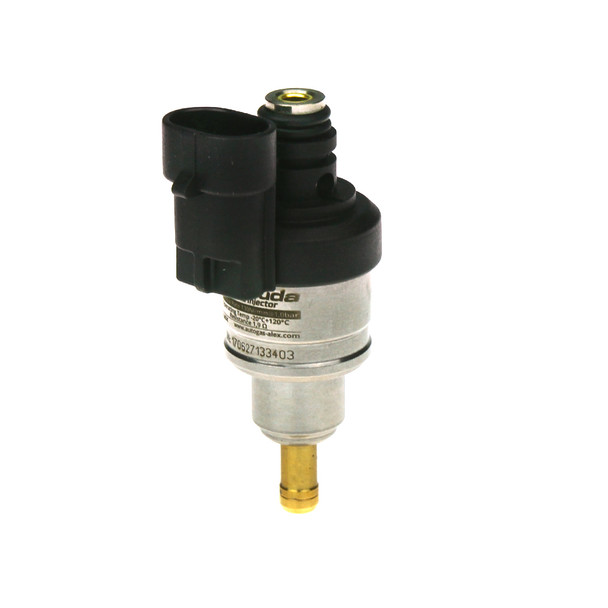

Barracuda Big Flow (130Nl/min) Single Mount Injector

Barracuda single mount injector big flow LPG, CNG injectors are dedicated for 50-80 BHP per cylinder sequential injection engines. Barracudas are know for long lifespan, duration, preciseness, are fast and solid.





Description:

- Piston construction

- Top gas feed

- Compact built

- Standard AMP SuperSeal connector socket (Valtek type)

- High-tech sliding coat with non-stick and anti-freeze function

- Calibrated by nozzles

- Widely configurable



Technical data:

Max flow rate at 1,0 bar [Nl/min] 130 ±1
Nozzle size [mm] max 2,8
Coil resistance [Ω] 1,9 ±5%
Opening time [ms] ˞1,9
Closing time [ms] ˞1,2
Max peak current [A] 4
Max hold current [A] 2
Operating working pressure [bar] 0,2 ÷ 4,2
Max working pressure [bar] 4,5
Operating temperature [°C] -20 ÷ 120
Operating voltage range [V DC] 6 ÷ 18
Warranty [km] 100 000
Life-span of stroke   > 500 mln of cycles
Connector   SuperSeal
Homologation   E8 67R-01 6407 ; E8 110R-00 6408
