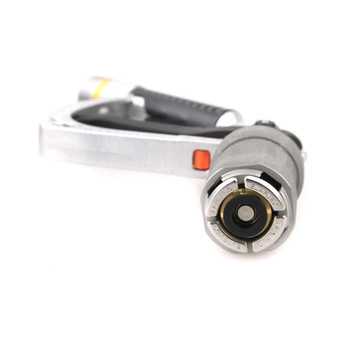

Autogas LPG Filling Nozzle - Italian Dish Type
- SKU:
- 500000
- Weight:
- 1.40 KGS
- Shipping:
- Calculated at Checkout
Description
Autogas LPG Filling Nozzle - Italian Dish Type
Filling nozzle used for filling tanks with Autogas with Italian Dish inlets.
Specification:
- Inlet size: 1" BSPP
- Service pressure: 350 psi 24 bar
- LPG Discharge on Disconnect: Less than 1 cm3
- Temperature Range: -40° F to 185° F (-40° C to 85° C) F
Features
- User-Friendly Single-Action Operation - entire fueling operation is initiated by simply engaging nozzle to the receptacle with a single squeeze of the hand.
- Hammer-Lock Technology - maximum durability. Designed specifically for frequent coupling and uncoupling.
- Ergonomic Design - insulated handle protects operator from temperature effects created by high-flowing LP gas. Minimal force required to engage nozzle.
- Durable Construction - heavyduty brass, aluminum and stainless steel construction provides excellent corrosion resistance in the harsh fueling environment.
- Ease of Use - incorporates a single plane 360º inlet swivel.
- Safety - will not dispense gas until securely engaged onto an appropriate receptacle. Once engaged, will not disengage until released by operator.
- Individually Leak Tested and Inspected with Traceable Serial Numbers
- Replaceable Rubber Cover - deflects venting LP gas away from operator’s hand.
Related Products
LPG Shop

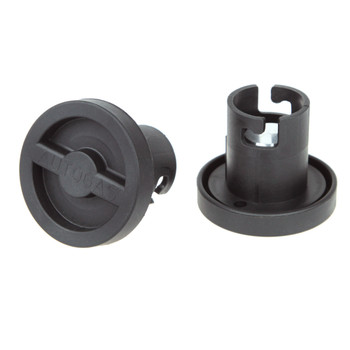

Autogas Cap for UK Bayonet Box - High Quality
6.43$
Round autogas cap for UK bayonet type boxes 50mm
Round cap with spring to cover UK bayonet LPG filler mounted in the box on the bumper or side of the car. Cap is with AUTOGAS sign on it and...
184006
6.43$

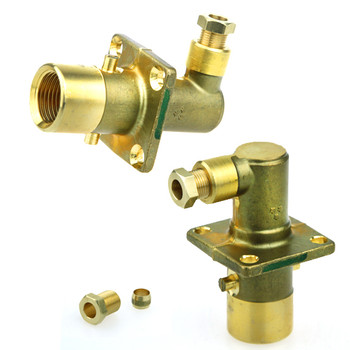

UK Bayonet Filling Point to 8mm - 90 deg.
25.55$
UK Filling Point Bayonet type to 8mm brass pipe - 90 degrees
UK Type Autogas filler with build in non return valve, with olive and nut for connecting UK type filling nozzle with 8mm gas pipe...
179001
25.55$

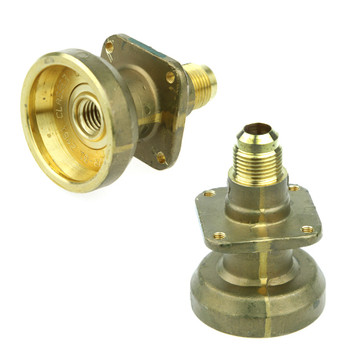

Dish type LPG filling point to JIC - straight
33.48$
Dish type LPG filling point with M14 female thread to 3/4 UNF JIC thread - straight
Autogas filling point for Dish type nozzles common in European countries such as France, Italy, Eastern...
179019
33.48$

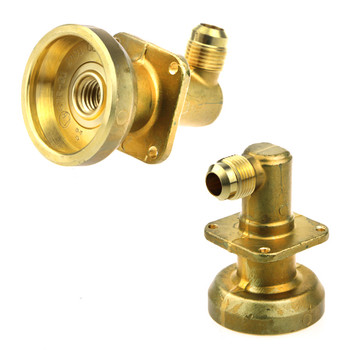

Dish type LPG filling point to JIC - 90 deg.
