70 Litres Motorhome Gas Tank with Feet Ø315mm by 1004mm

(No reviews yet) Write a Review

£344.99 Inc. VAT

£287.49

Ex. VAT

0% interest for 4 months with PayPal Credit. Find out more

Description

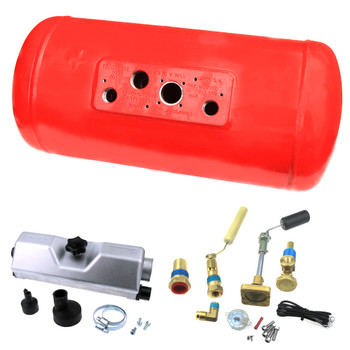

Red vapour tanks are specially designed for campervans, caravans, motorhomes and any other RV vehicles as they provide gas in vapour phase.

The tank can be safely refilled trough dedicated filling point at every Autogas LPG service station.

This is special version with 4 mounting feets.

The valves starting from the left are:

Manual outlet valve, thread without adapter: 1/4" NPT, with adapter: W21.8 LH
over pressure relief valve (PRV) - in case of sudden pressure increase (over 27 bar) the excess gas is released to the environment
gas level float with mechanical gauge
filling valve with 80% cut off valve (OPD), female thread without elbow: 3/8" NPT, with elbow 3/4" UNF JIC

Diameter [mm]	Lenght [mm]	Capacity [L]	80% capacity	Empty weight [kg]	Full tank weight [kg]
200	540	15	12L (6.18kg)	12.8	19
200	721	20	16L (8.32kg)	15	23
200	891	25	20L (10.4kg)	16.8	26.8
200	1070	30	24L (12.48kg)	18.9	30.9
230	645	23	18L (9.36kg)	14.5	23.5
230	822	30	24L (12.48kg)	16.5	28.5
230	1014	38	30L (15.6kg)	19.2	34.2
270	605	30	24L (12.48kg)	14.6	26.6
270	785	40	32L (16.64kg)	17.2	33.2
270	1060	55	44L (22.88kg)	21.7	43.7
300	647	40	32L (16.64kg)	17.2	33.2
300	935	60	48L (24.96kg)	21.8	45.8
300	1085	70	56L (29.12kg)	23.4	51.4
315	870	60	48L (24.96kg)	24.5	48.5
315	1000	70	56L (29.12kg)	28.4	56.4
360	629	55	44L (22.88kg)	24.9	46.9
360	936	85	68L (35.36kg)	33	67
360	1087	100	80L (41.6kg)	36	76
360	1298	120	96L (49.92kg)	40.2	88.2
