630-204-47L 30deg. Internal Tank STAKO

(No reviews yet) Write a Review
SKU:
143412
Weight:
26.00 KGS
Shipping:
Calculated at Checkout
  • STAKO 630-204-47Liters 30deg. 30deg. Toroidial Internal Tank

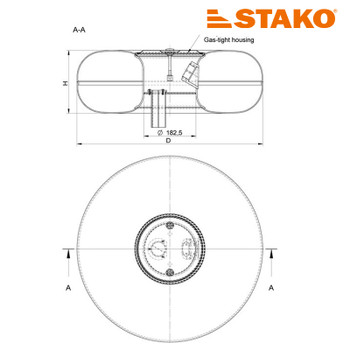

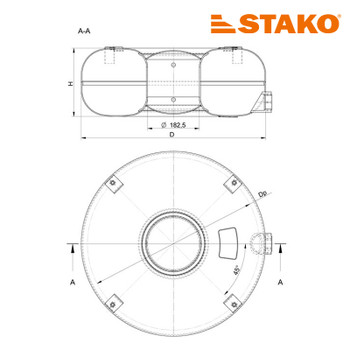

  • STAKO 630-204-47Liters 30deg. 30deg. Toroidial Internal Tank Vessel Propane LPG Autogas Drawing
£106.99 Inc. VAT
£89.16
Ex. VAT

Description

STAKO 630-204-47Liters 30deg. 30deg. Toroidial Internal Tank with mounting accesoriess.

Toroidal (donut) tank installed usually in place of the spare tire (internaly), for multivalves, with internal multivalve flange at 30 °, mounted on two bolts inside of covered hole.



Tank parameters:

Part number Diameter [mm] Height [mm] Capacity [Liters/US Gallons] Usable capacity V80% [Liters/US Gallons] Mass [kg/lb] Approval
 T63004712  630  204  47/12.42  37.6/9.93  25/55.12  E20-67R-010442 (PDF)



Technical data:

  • Design pressure: 30bar
  • Working pressure: 20 bar
  • Approval: ECE 67.01 Regulation
  • Working temperature: -20 + 65 oC
  • Fixing depends on the tank’s type, in accordance with the manufacturer's recommendations
  • Customized versions of the tanks to be arranged

Multivalve is NOT included.




Warranty Information

24 months manufacturer warranty.
