Ebsray RC20 RC25 Turbine LPG Pump

(No reviews yet) Write a Review
SKU:
500002
Availability:
On request
Weight:
100.00 KGS
Shipping:
Calculated at Checkout
£4,723.99 Inc. VAT
£3,936.66
Ex. VAT

0% interest for 4 months with PayPal Credit. Find out more

Description

Ebsray RC Series – Model RC20 and RC25 Regenerative Turbine Pump for LPG Applications



The Ebsray RC Series Regenerative Turbine Pumps are designed and precision-built for high-pressure transfer of LPG, autogas, propane, and butane.

Porting:
Inlet: NPT 1" 90º and/or 180º
Discharge: NPT 1" 90º and/or 180º



Pump Model
Flow Rate
(at 3,500 rpm)
Differential Pressure
(at 3,500 rpm)
Hydrostatic
Test Pressure
Power Pump
Speed
Weight
gpm L/min psi bar psi bar HP kW rpm lbs kg
RC20 15 58 175 12 1,015 70 2,9 2,2 3,500 43 19,5
RC25 25 94 175 12 1,015 70 4,8 3,6 3,500 43 19,5



Applications:

  • LPG Autogas dispensers, single or twohoses (RC25)
  • Industrial dispensing
  • Autogas refueling
  • Marine dispensing
  • Portable tanks
  • Cylinder filling
  • Forklift refueling
  • Direct burner or vaporizer feed



Features & Benefits:

  • Quiet, vibration-free operation
  • Low maintenance, single-stage impeller
  • Close coupled to standard NEMA
  • C-face motors. IEC C-face adapter available.
  • Simple installation with C-face close coupled mounting
  • Versatile 3-port arrangement self-venting design
  • Bypass valve connection port direct on pump
  • Balanced mechanical seal, unique cartridge design for simplicity of assembly/maintenance
  • Throttle bushing for secondary sealing



Assured Quality &Performance
ISO 9001 Quality System assures compliance with the high safety and quality standards demanded by the LPG industry Pumps are listed by Underwriters Laboratories for LP-gas service.

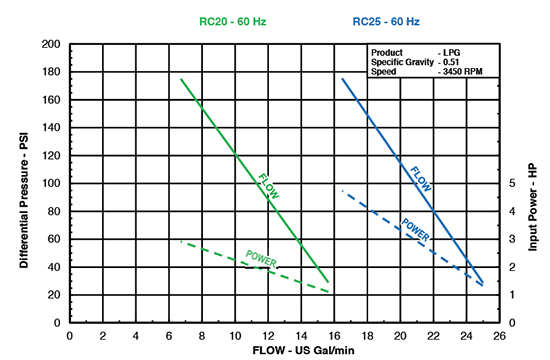

Performance chart:

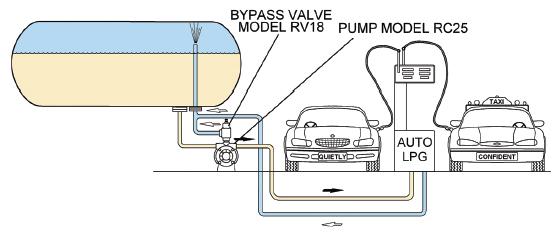

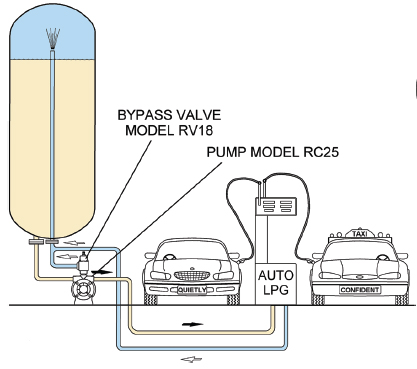

Typical installations:
