GAS IT Two Small 6kg Refillable LPG Gas Bottles

(1 review) Write a Review
SKU:
400286
Weight:
9.00 KGS
Shipping:
Calculated at Checkout
  • GAS IT Two Small 6kg Refillable LPG Gas Bottles
  • 6kg , 14.5 Litre, Refillable, Bottle, gas, cylinder, propane, butane, with Gauge, GAS IT, gasit, 80% stop valve, safe refill
  • 6kg , 14.5 Litre, Refillable, Bottle, gas, cylinder, propane, butane, with Gauge, GAS IT, gasit, 80% stop valve, safe refill
£374.99 Inc. VAT
£312.49
Ex. VAT

0% interest for 4 months with PayPal Credit. Find out more

  • UK Bayonet Filling Point to JIC - Angled with Cap and Bracket
  • UK Bayonet Filling Point to JIC - Angled with White Box
  • UK Bayonet Filling Point to JIC - Angled with Box
  • UK Bayonet to JIC 3/4" Plate Filling Point Angled
  • Motorhome Gas Filter Unit with UK Adapter
  • Travel set of three adapters for Bayonet LPG filling point covering all Europe
  • Gas Manifold Distribution Tap 1 Way
  • Gas Manifold Distribution Block 2 way
  • Gas Manifold Distribution Block 3 way
  • Inline Gas Valve 8mm Compression Low Pressure
  • Gas Manifold Distribution Block 2 Ways
  • Gas Manifold Distribution Block 3 Ways
  • Gas Manifold Distribution Block 4 Ways
  • Changeover Switch Gas Regulator 30mBar for Motorhomes with Two Pigtails
  • GOK Changeover Switch CPU Regulator DriveTwo 30mBar for Motorhomes with Two Pigtails
  • Truma DuoControl CS Changeover Regulator 30mbar with Crash Sensor and W21.8 M20 Pigtails
  • 6m x 8mm Copper Pipe with Fittings Kit
  • TriGasAlarm - Gas detector for motorhomes
  • Teflon PTFE Tape White 0.1mm 13m

Description

The base price is for bottle only with fully fitted valves. It does not come with any filler or other accessories unless options selected.

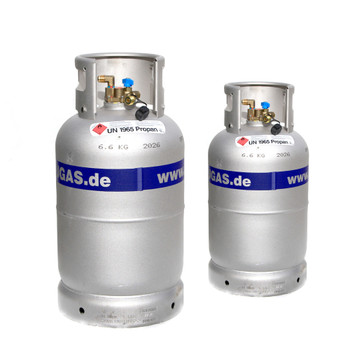

Set of two 6kg (14.5L) GAS IT Refillable Bottle with optional accessories

Safe refill GAS IT propane butane bottle with separate 3/4 UNF JIC type inlet and W21.8mm x 1/14 lh (G.8 standard) Shell type Left Hand thread outlet for gas regulators which can be used for BBQ, camping, cooking, heating at home, on campervan, caravan, motorhome, boat or for industrial burners and blowtorches.

This cylinder is equipped with automatic Overfill Protection Valve - it will cut off the gas supply from the pump once the bottle is filled up to 80% level.

PLEASE NOTE: Bottle must be vertically positioned to ensure proper work of overfill valve.

Moreover this bottle is equipped with special separate outlet valve with level sender and gauge which measures the level of the propane butane or LPG gas in the bottle.

One of the great advantages of the separate inlet is that it allows you to use an external filling point (with different standards ie. UK or European one) so that the bottle can be refilled at Autogas stations in a discrete manner, without removing the bottle from the lock each time. A separate outlet on the other hand, allows you to keep the gas regulator permanently attached to the bottle, without the need of removing it for refilling.

Specification

  Small 6kg Large 11kg
80% gas capacity 12 litres 22 litres
Empty weight 8.7kg 10.9kg

Full weight

14.7kg 21.9kg
Height with handle 50cm 57cm
Height without handle 47cm 53cm
Diameter 25cm 30cm
Inlet thread 3/8"NPT without elbow
JIC 3/4" with elbow
Outlet thread Shell G.8 Standard
W21.8 left thread



Options explained

Filling point - Remote filling point underneath vehicle
The filling point bolted to the chassis. The easiest option for external filling point.



Filling point - Remote filling point in recessed white box
Recessed filling point in white box. Requires 70mm hole to be drilled in the body. Total length is about 9cm.



Filling point - Remote filling point in recessed box black
Recessed filling point in black box. Requires 70mm hole to be drilled in the body. Total length is about 9cm.

Filling point - Remote filling point flat
Recessed flat filling point with detachable adapter. Requires 28mm hole to be drilled in the body. Total length is about 9cm.
Level indicator - Mechanical level indicator
Simple arrow level indicator to attach to the outlet neck.
Level indicator - Bluetooth Tank Check
Digital Bluetooth indicator with magnet holder to stick to the bottom of the cylinder. Level can be checked at Android or iPhone app.
Pressure regulator - Changeover Switch Gas Regulator 30mBar
Approved two stage regulator with changeover switch. Empties one bottle at the time.

European adapters - Set of 3 European adapters
Must have for overseas journeys. This set covers all Europe.








1 Review

  • 3
    Not complete

    Posted by Allan on 30th Jun 2020

    Bought what I thought was a complete kit, but wasn’t!!!
